PREMIUM CANON DETECTORS

X-ray DETECTORS

Arcoma X-ray systems are powered by Canon’s wireless next generation detectors and imaging software. These ultra-lightweight and waterproof x-ray detectors with image storage, are ideal for usage on board or stand-alone as needed.

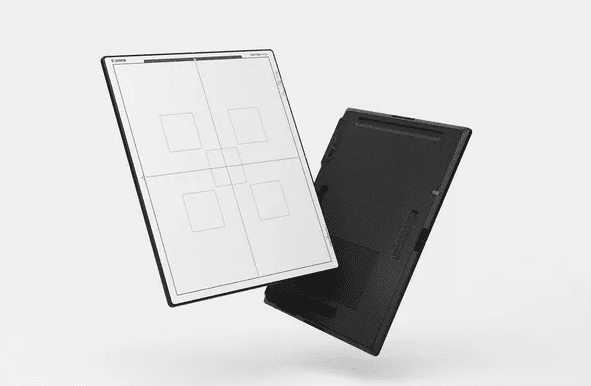

New CXDI-Elite

Canon’s next generation wireless flat panel detector line-up takes you to new heights of possibilities in Digital Radiograph.

The state of the art wireless detector line-up takes you to new heights of possibilities in digital radiography.

Intelligent NR, built-in AEC assistance, reduced weight, dust and waterproof, on-board memory and enhanced detector design are just a few of the clinically beneficial new features.

Optimized image quality with the lowest possible dose

The Arcoma X-ray systems with an optimized beam geometry, together with Canon flatpanel detectors and image reconstruction software, guarantees the best possible image quality at the lowest possible dose.

Comprehensive image processing including ‘Scatter Correction’ and ‘Advanced Edge Enhancement’ as imaging options, in order to optimize the x-ray images even with a low dose.

Light and wireless Canon detectors

The Canon detectors are carefully designed to achieve the lightest possible weight for the best ergonomics and workflow for the user. The detectors are portable and wireless, which together with Arcoma’s X-ray system enables the highest possible patient throughput.

Despite their featherlight characteristics, the carbon fibre chassis and frame ensure high performance and high durability, tested for the stress of daily use.



Strong and durable detectors for X-ray systems

Although the chassis and frame are lean, high performance and durability are ensured. The use of lightweigh materials improves the weight of the Canon detectors as well as the strength and durability.

The detectors can withstand a load of 310kg, which allows direct weight-bearing imaging with obese patients.

  • DURABLE DESIGN

  • DUST AND WATERPROOF

  • COVERS CAN BE REPLACED IN CASE OF DAMAGE

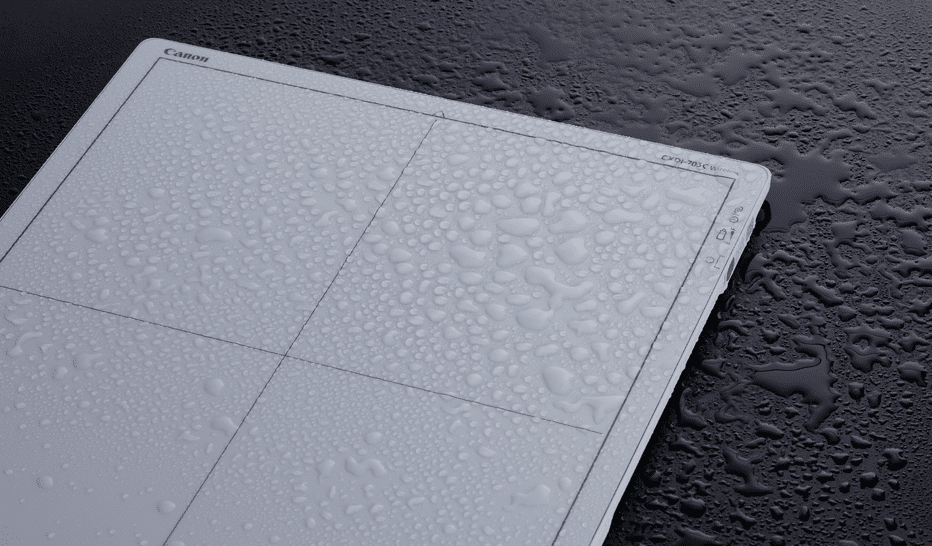

Dust and waterproof x-ray detectors

Contact with fluids and dust is inevitable, particularly in emergency- and high-dependency care. The IP protection against dust and liquid entering the FPD provides you with extra assurance in the product, while it is in use under challenging conditions, or when cleaning the detectors for safety.

The CXDI-Pro series are IP55 dust and waterproof.

The CXDI-Elite series are all IP57 dust and waterproof.

Ergonomic design

The ergonomically sculpted detectors for digital radiography includes many features that enhances both the users and patients experience. A comfortable hand grip enables efficient and easy transfer of the detectors.

The detectors are also easy and pleasant to handle and to position, due to the selection of high quality materials. The ergonomically shaped cover makes the detectors comfortable to use for the operator during and between x-rays.

  • LIGHTWEIGHT

  • EASY AND COMFORTABLE TO HANDLE

  • EASY TO POSITION

Multi-function storage

The multi-function docking station combines the following capabilities in one compact desktop unit to help make your work and workflow even more convenient.

  • Detector check in

  • Detector battery charging

  • Image transfer

  • Safe detector storage

Detectors applicable with Arcoma X-ray systems


CXDI-Elite series range

CXDI-720C Wireless DR detector

WIRELESS X-RAY DETECTOR
35×43 cm imaging area, 2.3 kg.

CXDI-420C Wireless DR detector

WIRELESS X-RAY DETECTOR
43×43 cm imaging area, 2.7 kg.

CXDI-820C Wireless DR detector

WIRELESS X-RAY DETECTOR
27×35 cm imaging area, 1.8 kg.


CXDI-Pro series range

CXDI-703C Wireless DR detector

WIRELESS X-RAY DETECTOR
35×43 cm imaging area, 2.9 kg.

CXDI-403C Wireless DR detector

WIRELESS X-RAY DETECTOR
43×43 cm imaging area, 3.5 kg.

CXDI-803C Wireless DR detector

WIRELESS X-RAY DETECTOR
27×35 cm imaging area, 2.1 kg.


CXDI-710 Series range

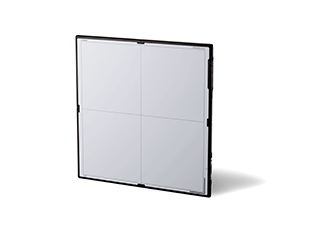

CXDI-410C Wireless

Dimensions: 42.6 x 41.5 cm
Weight: 2.8 kg

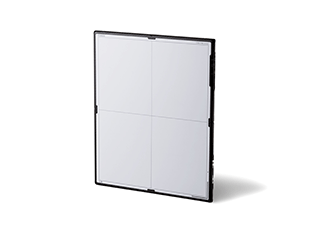

CXDI-710C Wireless

Dimensions: 35.0 x 42.6 cm
Weight: 2,3 kg

CXDI-810C Wireless

Dimensions: 35.0 x 27.4 cm
Weight: 1,8 kg
